VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility
Productdetails
| Naam | VFD van hoog niveau | Positiecontrole | Positiecommando ondersteunt interne positie, pulspositie-invoer, CANopenpositiecommando, EtherCATpos |
|---|---|---|---|
| Vermogensbereik | 0.75kw-710kw | Frequentie | tot 3000hz |
| Spanning | 220V 380V | OEM | Steun |
| Bescheiden | Veikong -variabele frequentiedrijfaandrijving, variabele frequentiedrijf OEM, OEM hoog niveau VFD |
Productomschrijving
VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility
1. Product Description:
Veikong releases VFD580 series with all-round functions
The newly released VFD580 series from Veikong is a one-stop solution for motor control. Developed to be compatible with both IM and PMSM motors, this series is equipped with all-round functions for better performance. It offers excellent safety features with the inclusion of the STO function for providing protection to the operator and equipment.
The VFD580 series offers a great deal of flexibility in terms of communication with the addition of communication options such as RS485, Canopen, and Profinet. It is suitable for different special applications, for example, the fly shear. This feature further adds to the versatility of the device.
In conclusion, the VFD580 series is an optimal choice for industrial applications that require reliability, safety, and ease-of-use. The multiple features packed into this series ensure maximum efficiency when it comes to motor control.
2. Series description
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Three phase :400V | ||||
| VFD580/586-2R2-T4B | 5.6A | 2.2KW |
SIZE A |
Standard built-in |
| VFD580/586-4R0-T4B | 9.4A | 4.0KW | ||
| VFD580/586-5R5-T4B | 13.0A | 5.5KW | ||
| VFD580/586-7R5-T4B | 17.0A | 7.5KW | SIZE B | |
| VFD580/586-011-T4B | 25.0A | 11KW | ||
| VFD580/586-015-T4B | 32.0A | 15KW |
SIZE C |
|
| VFD580/586-018-T4B | 37.0A | 18.5KW | ||
| VFD580/586-022-T4B | 45.0A | 22KW | ||
| VFD580/586-030-T4B | 60.0A | 30KW | SIZE D | |
| VFD580/586-037-T4B | 75.0A | 37KW | ||
| VFD580/586-045-T4 (B) | 90.0A | 45KW | SIZE E |
Optional built-in |
| VFD580/586-055-T4 (B) | 110.0A | 55KW | ||
| VFD580/586-075-T4 (B) | 152.0A | 75KW | SIZE F |
Optional built-in |
| VFD580/586-090-T4 (B) | 176.0A | 90KW | ||
| VFD580/586-110-T4 | 210.0A | 110KW |
SIZE G |
Circumscribed |
| VFD580/586-132-T4 | 253.0A | 132KW | ||
| VFD580/586-160-T4 | 304.0A | 160KW | SIZE H | |
| VFD580/586-200-T4 | 380.0A | 200KW |
SIZE I |
|
| VFD580/586-220-T4 | 426.0A | 220KW | ||
| VFD580/586-250-T4 | 465.0A | 250KW | ||
| VFD580/586-280-T4 | 520.0A | 280KW | SIZE J | |
| VFD580/586-315-T4 | 585.0A | 315KW | ||
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Single phase/Three phase :220V | ||||
| VFD580/586-0R7-S2B (T2B) | 5.6A | 0.75KW |
SIZE A |
Standard built-in |
| VFD580/586-1R5-S2B (T2B) | 8.0A | 1.5KW | ||
| VFD580/586-2R2-S2B (T2B) | 10.6A | 2.2KW | ||
| VFD580/586-4R0-S2B (T2B) | 17.0A | 4.0KW | SIZE B | |
| VFD580/586-5R5-S2B (T2B) | 25.0A | 5.5KW | ||
| VFD580/586-7R5-S2B (T2B) | 32.0A | 7.5KW | SIZE C | |
| VFD580/586-011-S2B (T2B) | 45.0A | 11KW | ||
| VFD580/586-015-S2B (T2B) | 60.0A | 15KW | SIZE D | |
| VFD580/586-018-S2B (T2B) | 75.0A | 18.5KW | ||

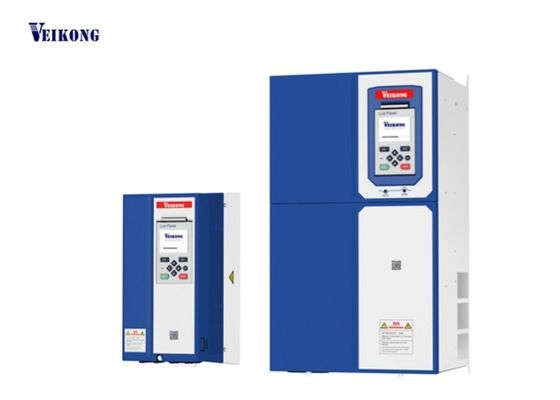

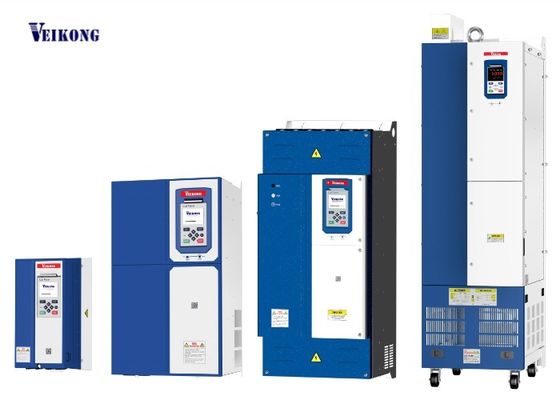

3. VFD580 product images
4. Wide applications
